MAIN DATA
Application Street Lighting
Optical Group AR-KY patented Optics
Color Temperature 4000 °K and others on demand
CRI > 70
Photobiological Class EXEMPT GROUP
Source Efficiency LED 140 lm/W
Tilt Scale 3° step tilting

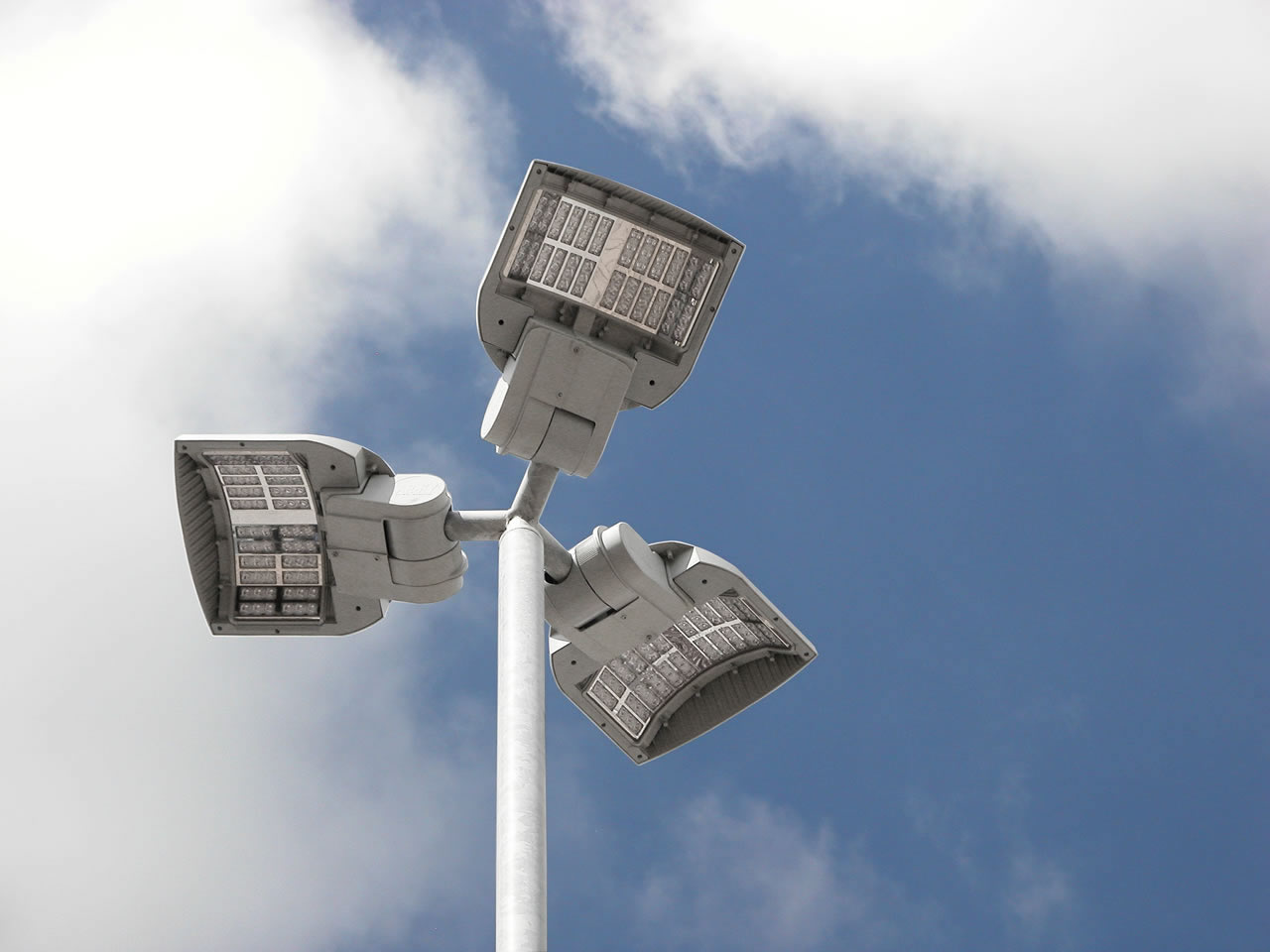

Assembly head pole or extension arm
Dimensions  594 x 463 x 181 mm – 5,7 Kg



CARATTERISTICHE ELETTRICHE
Alimentation 100 – 264 VAC 50-60 Hz
LED current 350 mA
Power Pack Con PFC – Self-Protected
LED Lifespan > 70.000 h – L70 – Ta=25°C
APPLICATIONS

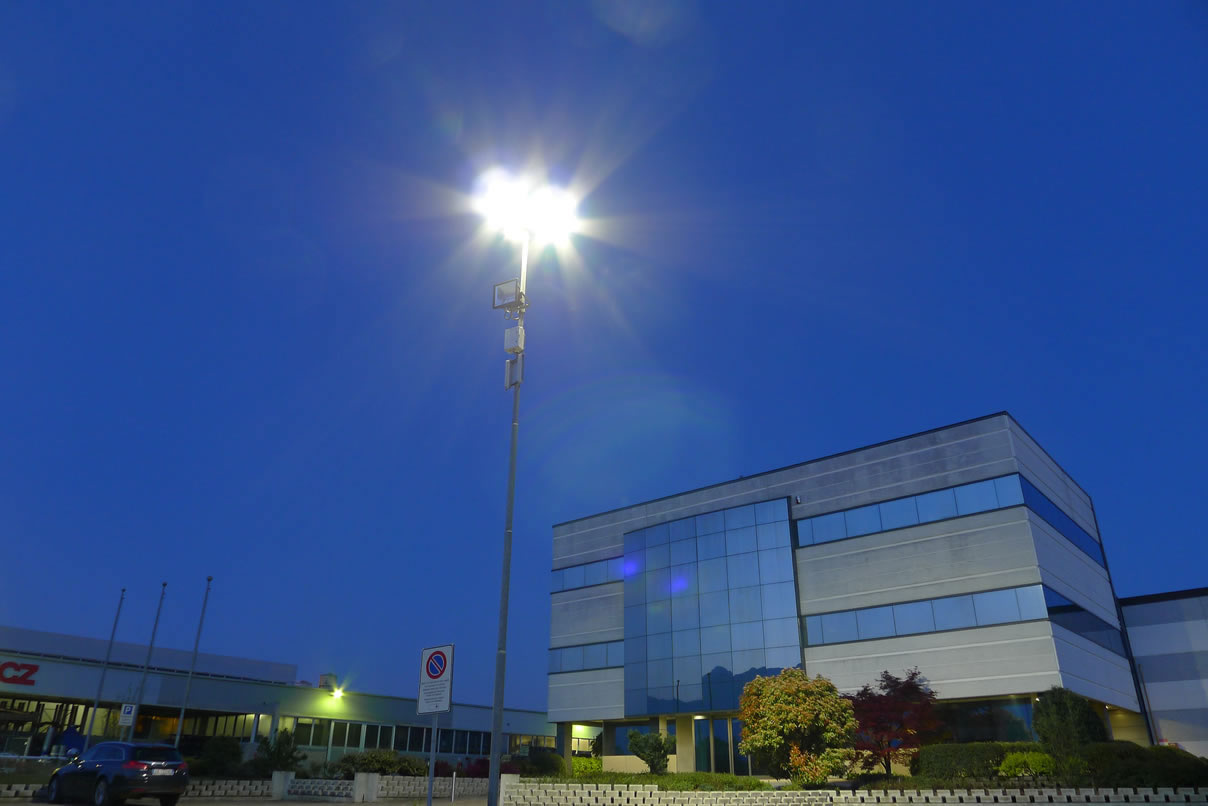

Lighting of residential streets, curbs, squares, parking lots and industrial parking areas.
 CERTIFICAZIONI

…………………………………………………………………………………………………………………………………………………………………..

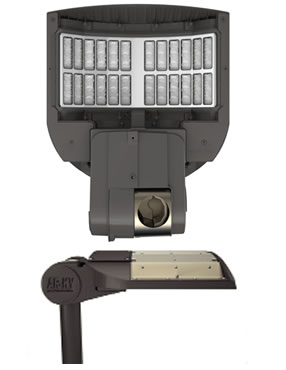

The DISCOVERY array consists of the following models

DISCOVERY 36 36 LED 40 W alimentatore compreso  scheda tecnica
DISCOVERY 42 42 LED 47 W alimentatore compreso  scheda tecnica
DISCOVERY 48 48 LED 53 W alimentatore compreso  scheda tecnica
DISCOVERY 54 54 LED 60 W alimentatore compreso  scheda tecnica
DISCOVERY 72 72 LED 80 W alimentatore compreso  scheda tecnica

WHY CHOOSE AR-KY’s LED LIGHTING MODULES?

For years AR-KY’s research and development lab has focused on the study of high-performance materials in order to raise that very quality-performance ratio that makes our products unique. Through a careful analysis of data from laboratory and practical tests we have come to create materials with improved performance compared to the needs of this category of products. These features include: weather resistance, shock resistance, ability to dissipate heat, handling installation, ability to maintain inaltered the required IP characteristics, the possibility of maintenance while the product is functioning, modularity, production cycle with low energy impact (during the production cycle), compliance with current regulations.

The DISCOVERY module for street lighting is made of aluminum and PA 66 GF20. This allowed us to create a product with great resistive quality, as demostrated by the IK08 certification and by the results obtained in wind resistance tests(up to 188 Km/h) conducted by a recognized organization, Enginsoft S.p.A. In addition to this the product weighs only 5.7 kg thanks to great engineering work, which makes AR-KY street lights very maneuverable while still providing a greater degree of safety for the operators during installation.

The glass cover has the great disadvantage of being dangerous when it breaks due to vandalism or minor shocks, causing fragments to invade the roadways, and an immediate loss of the IP protection of the light itself.

For these reasons at AR-KY we pride ourselves on having achieved to create the DISCOVERY LED street lighting, which does not necessitate of a glass cover.

The patented AR-KY optics are made of Bayer MACROLON with anti-UV treatment.

The lights are constituted by modules that can be replaced while in use and that can be supplied separately. Similarly to the entire structure they have been designed so that performing maintenance operations doesn’t alter the degree of IP protection. These can be done by any qualified installer simply using a screwdriver.

The unit conforms to the rule laid down by the Veneto Regional Law no.17 of the 7th of August 2009. It is of the “cut-off” type, and thus suitable for installation in Zone 1, with a maximum luminous intensity between 0 and 0.49 candelas per 1000 lumens of total luminous flux emitted at 90° and beyond. The product is marked with the CE Mark and the Intertek Mark(IMQ equivalent) and complies with current regulations.
